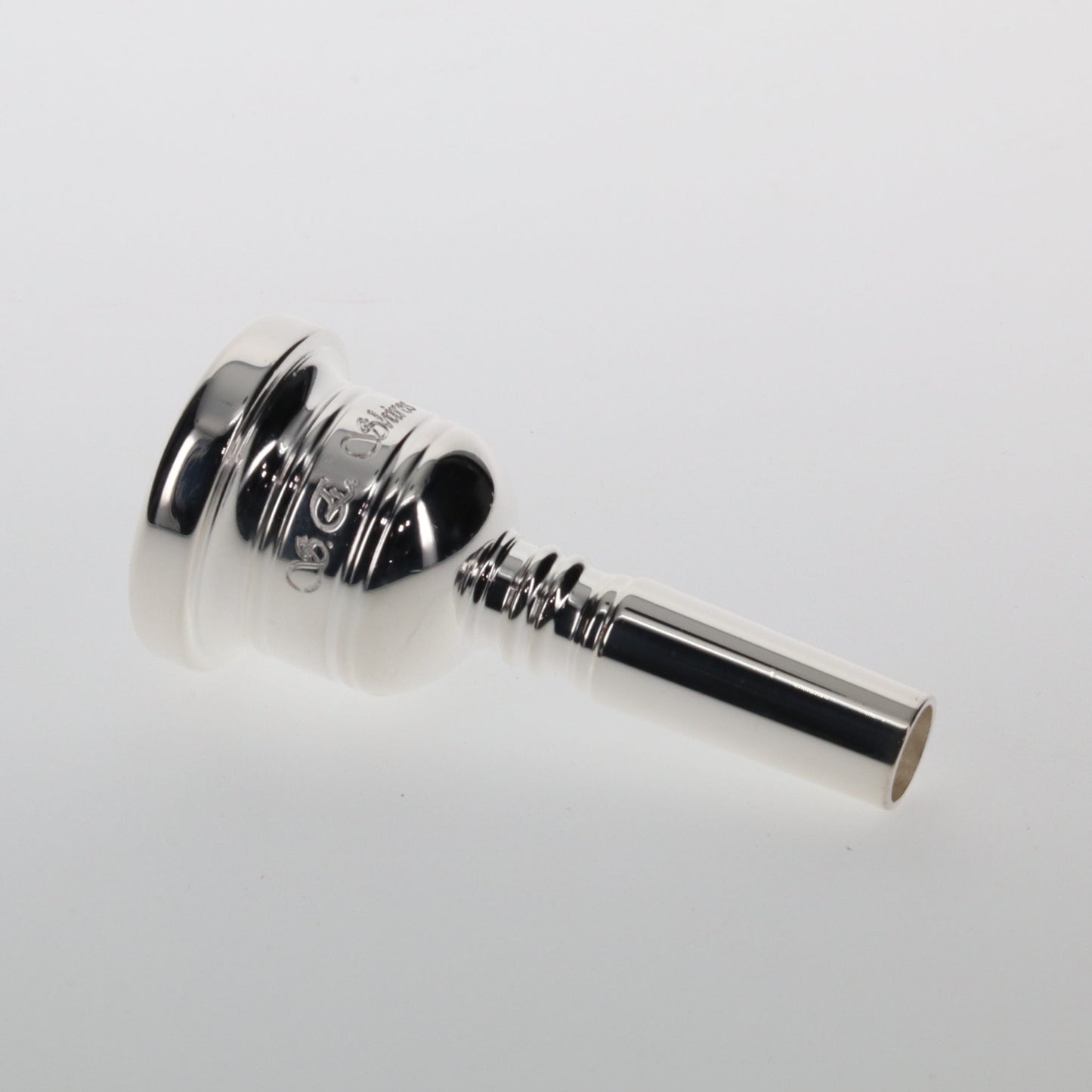

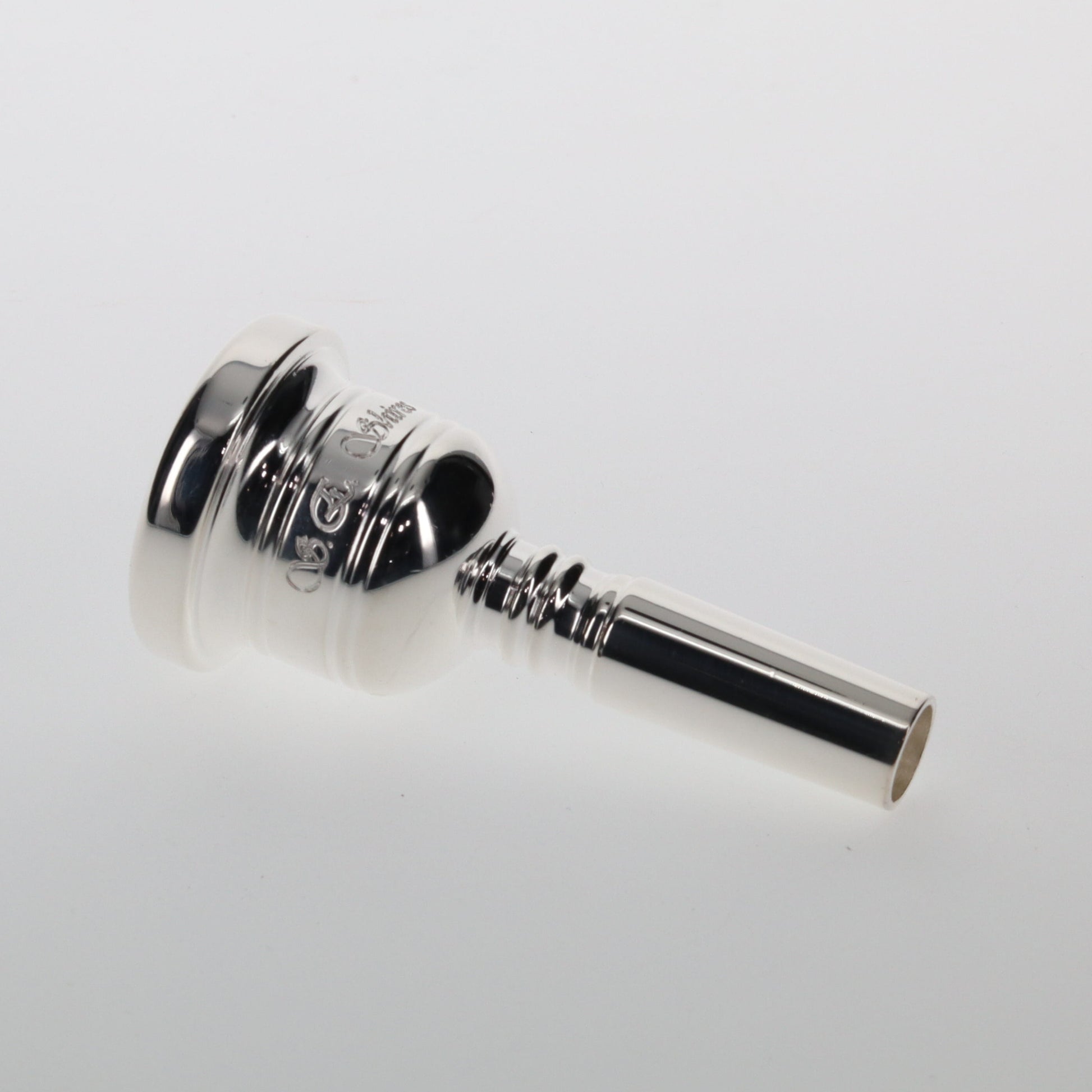

S.E. Shires Trombone Mouthpiece: Large Bore
S.E. Shires Trombone Mouthpiece: Large Bore
Couldn't load pickup availability
Made in the USA

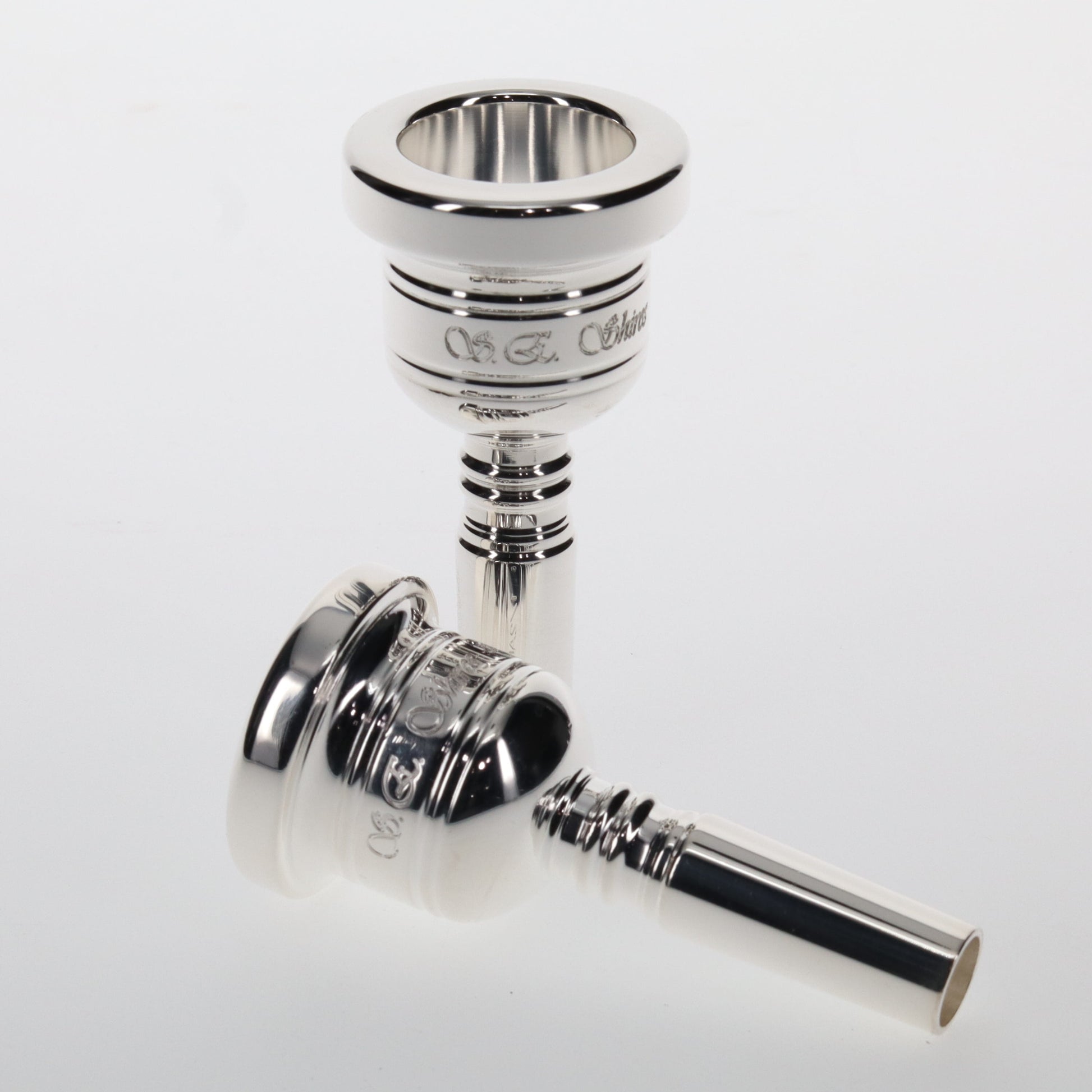

S.E. Shires Large-Shank Trombone Mouthpieces
Choose a large-shank mouthpiece for your tenor or bass trombone with the diameter, cup, and throat combination that suits your playing. This range includes both instrument types, so begin with the appropriate group below, then compare the measurements with your current setup.
How to Choose:
- Diameter: Compare the measured inner diameter rather than relying on the model number alone. Models sharing a number can have different dimensions.
- Cup depth: Compare medium, medium-deep, deep, and extra-deep options within your preferred size.
- Cup shape: The Shires chart identifies C and V–C shapes; these are separate from cup-depth designations.
- Throat: Compare this dimension alongside diameter and cup design when evaluating response.
Large-Shank Tenor Models:
| Model | Inner diameter* | Throat | Cup depth | Cup shape |
|---|---|---|---|---|
| 6½ALL | 1.000" | 0.266" | Medium | V–C |
| 5GSL | 1.010" | 0.262" | Medium deep | V–C |
| 6M | 1.000" | 0.269" | Medium | V–C |
| 5G | 1.016" | 0.276" | Medium deep | C |
| 5MD | 1.018" | 0.281" | Medium deep | V–C |
| 4½M | 1.020" | 0.283" | Medium | V–C |
| 4½MD | 1.020" | 0.280" | Medium deep | V–C |
| 4G | 1.032" | 0.275" | Medium deep plus | C |
| 4M | 1.032" | 0.283" | Medium | V–C |
| 4MD | 1.032" | 0.280" | Medium deep | V–C |
In the Shires measurement chart, our 6½ALL is listed as large-shank 6½AL, and our 5GSL is listed as large-shank 5GS.
Large-Shank Bass Models:
| Model | Inner diameter* | Throat | Cup depth | Cup shape |
|---|---|---|---|---|
| 2G | 1.057" | 0.283" | Medium deep | C |
| 2MD | 1.070" | 0.283" | Medium deep | V–C |
| 1½G | 1.075" | 0.277" | Medium deep | C |
| 1½MD | 1.089" | 0.291" | Medium deep | V–C |
| 1½D | 1.089" | 0.300" | Deep | V–C |
| 1½XD | 1.089" | 0.300" | Extra deep | V–C |
| 1¼G | 1.127" | 0.289" | Medium deep | C |
| 1¼MD | 1.127" | 0.298" | Medium deep | V–C |
| 1¼D | 1.127" | 0.301" | Deep | V–C |
| 1G | 1.140" | 0.316" | Medium deep | C |
| 1MD | 1.142" | 0.313" | Medium deep | V–C |
| 1D | 1.142" | 0.319" | Deep | V–C |
| 1XD | 1.142" | 0.314" | Extra deep | V–C |
| ¾MD | 1.156" | 0.328" | Medium deep | V–C |
| ¾D | 1.156" | 0.328" | Deep | V–C |
| ¾XD | 1.156" | 0.328" | Extra deep | V–C |
| ½MD | 1.166" | 0.335" | Medium deep | V–C |
| ½D | 1.166" | 0.335" | Deep | V–C |
½X (0.5X): Also available. Contact us for specifications and selection guidance for this model.
*Dimensions are in inches. Inner diameters follow the manufacturer’s “ID @ 0.065” measurement reference. Measurements taken using different methods may not be directly comparable.
See the official S.E. Shires measurement charts for diagrams and further comparisons. Available in polished silver plating.
