The Mouthpiece Gap: What It Is, What It Does, and Why There Is No “Perfect” Measurement

Few trumpet measurements generate as much discussion—and as much misunderstanding—as mouthpiece gap.

Players often hear that a particular gap is “too large,” “too small,” or simply “wrong.” Measurements are compared, equipment is modified, and sometimes a single number is blamed for every problem from articulation to intonation. But gap does not operate by itself, and there is no universal measurement that is ideal for every mouthpiece, trumpet, or player.

The useful question is not, “What is the perfect gap?” It is, “How does this mouthpiece, receiver, and leadpipe work together—and does that complete system help the player produce the desired musical result?”

What is the mouthpiece gap?

When a trumpet mouthpiece is inserted into the receiver, the tapered mouthpiece shank contacts the matching taper inside the receiver. That contact stops the mouthpiece before the end of the shank reaches the next internal transition in the instrument, the leadpipe venturi.

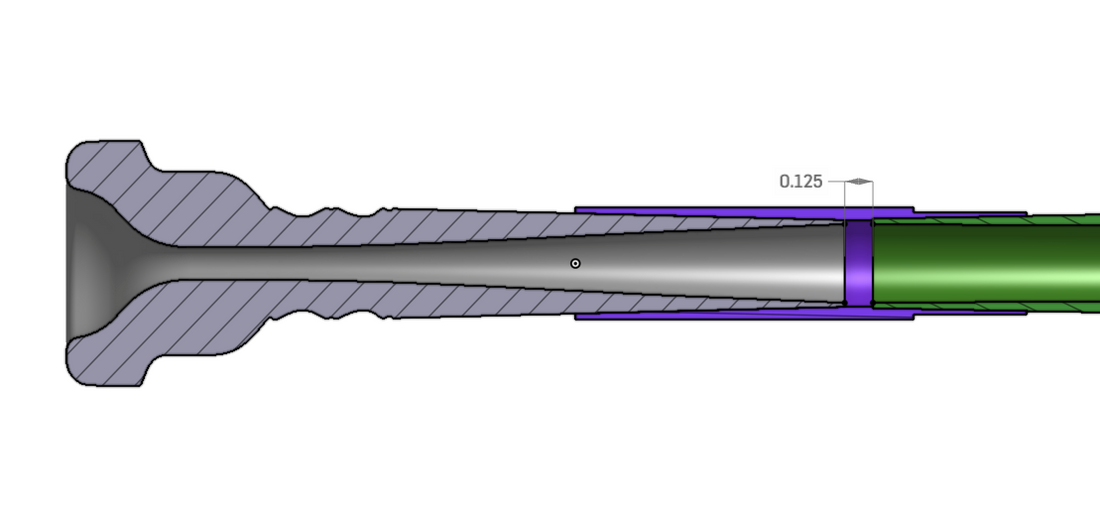

The distance between the end of the mouthpiece shank and the venturi is commonly called the mouthpiece gap. Depending on the construction of the trumpet, the reference point may also be described as the beginning of the leadpipe, the venturi, or the transition from the receiver into the leadpipe. That is one reason gap measurements and descriptions are not always directly comparable between instruments.

The gap is hidden inside the assembled trumpet. It is easy to discuss as though it were an independent spacer, but it is actually the result of several dimensions working together.

What creates the gap?

Gap is determined by the relationship between the mouthpiece and the trumpet—not by either component alone. Important factors include:

• The taper and outside diameter of the mouthpiece shank
• The taper and internal dimensions of the receiver
• How deeply the mouthpiece inserts before the tapers make contact
• The length of the mouthpiece shank
• The location and shape of the receiver-to-leadpipe transition
• The leadpipe design, including its venturi and internal taper

Change any one of these, and the resulting gap may change. Two mouthpieces that appear very similar can seat at very different depths. The same mouthpiece can also create different gaps in two trumpets because the receivers and leadpipes are not identical.

This is why a gap measurement cannot be separated from the equipment used to create it.

Why is there a gap at all?

The gap is not automatically a manufacturing error or an empty space that should be eliminated. It is part of the transition from the mouthpiece into the trumpet’s air column.

As the vibrating air leaves the mouthpiece, it encounters the end of the shank, the receiver area, and then the beginning of the leadpipe. The geometry of this region contributes to how the complete system responds. A properly functioning design does not require necessarily the end of the mouthpiece to touch the next internal surface.

In fact, trying to force a “zero gap” without considering the rest of the geometry can create a poor fit or an undesirable playing result. A number that sounds tidy in theory is not necessarily musically useful.

How can gap influence the way a trumpet feels?

Changes in gap can influence a player’s perception of response, articulation, resistance, slotting, and flexibility. Players sometimes describe a larger-gap setup (to a point) as having a more defined attack or more resistance, while a smaller-gap setup may be described as smoother or more open, slippery.

Those descriptions can be useful observations, but they are not universal rules. The same dimensional change can feel different when paired with another cup, throat, backbore, receiver, or leadpipe. The player’s air use, embouchure, musical role, and preferred feedback also matter.

A change that improves articulation for one player may feel too rigid to another. A setup that feels open and flexible in one instrument may feel unfocused in another. The effect of gap is always filtered through the rest of the system.

Why “larger” and “smaller” are not the same as “better” and “worse”

It is tempting to turn gap into a simple scale: more gap means more of one characteristic, less gap means more of another, and the player only needs to choose a position on that scale. Real instruments are more complicated.

A different mouthpiece may change both the gap and the internal path through the mouthpiece. A receiver modification may change insertion depth as well as the way the shank is supported. A leadpipe change may alter the transition after the gap along with the venturi and taper farther down the tube.

When several variables change at once, it is difficult to assign the result to the gap alone.

Most importantly, the largest or smallest possible gap is not the objective. The goal is a stable mechanical fit and a playing balance that supports the desired sound, articulation, intonation, flexibility, and endurance.

Why copying another player’s measurement may not work

Knowing that another player uses a particular gap can be interesting, but reproducing that number does not reproduce that player’s setup.

The other player may use a different mouthpiece shank, cup, throat, or backbore. The receiver may have different dimensions. The leadpipe may begin at a different point or use a different internal taper. Even two examples of the same model can have small dimensional differences caused by manufacturing tolerances, wear, repairs, or previous modifications.

And, of course, the players are different.

A measurement can document a setup, but it cannot tell you whether that setup will be appropriate for someone else.

What is a genuine fit problem?

Not every complaint about gap is really about gap. Sometimes the issue is the mechanical fit between the mouthpiece shank and the receiver.

A properly seated mouthpiece should be held securely by the matching tapers. It should not rock or wobble noticeably in the receiver or bottom out against an internal surface before the tapers seat correctly. An unusually shallow insertion, repeated sticking, visible shank damage, air leakage, or inconsistent seating deserves closer inspection by qualified technician.

Receiver wear, dents, contamination, an incorrect shank taper, or a previously altered mouthpiece can all affect fit. In those cases, changing the nominal gap may not address the actual problem.

Do not force a mouthpiece into the receiver or modify the shank without understanding the complete geometry. Removing material is easy; restoring the original relationship is not.

Can gap be measured accurately?

Yes, but meaningful measurement requires a clear reference point and suitable tools. Because the relevant surfaces are inside the receiver, estimating from the visible insertion depth alone does not reveal the complete internal relationship.

Before comparing two reported measurements, make sure they were taken from the same reference points and with the same method. Otherwise, two people may use the word “gap” while measuring slightly different things.

Measurement is most valuable when it supports a controlled comparison or helps diagnose a fit issue. It is less useful when treated as a score that determines whether an instrument should play well.

How to evaluate a gap change

If you are testing a change in gap, keep as much of the setup constant as possible. Use the same trumpet, the same mouthpiece components, and familiar musical material. If a modular system allows the shank or backbore relationship to be changed without changing the rim and cup, that can make the comparison more informative.

Test more than the first few notes. Include:

• Soft attacks and louder articulations
• Long tones at several dynamics
• Slow and fast flexibility
• Low, middle, and upper registers
• Familiar notes with a tuner or drone
• Sustained playing to evaluate endurance
• A musical passage that reflects your normal work

Record from across the room or ask a trusted listener to compare the results. The physical sensation behind the instrument is important, but it should be considered alongside the sound and consistency heard by the audience.

Change one variable at a time whenever possible. If the mouthpiece, backbore, leadpipe, and gap all change together, you may prefer the result, but you will not know which change was responsible.

Do not chase the number

Gap is real, measurable, and capable of significantly influencing how a trumpet responds. It is also only one part of a much larger system.

A particular measurement is not inherently good or bad. A large gap is not automatically powerful or resistant. A small gap is not automatically open or efficient. And a setup does not become correct simply because it matches a number recommended online.

The best gap is the one created by a properly fitted mouthpiece and a well-designed receiver-and-leadpipe relationship that supports the individual player’s musical goals.

At Pickett Brass and Blackburn Trumpets, we evaluate these dimensions as parts of a complete acoustic and mechanical system. If you have questions about mouthpiece fit, unusual insertion depth, or how a mouthpiece interacts with your instrument, contact our Help Desk or schedule a consultation before making a permanent modification.
